Series 5000 2" Diagonal

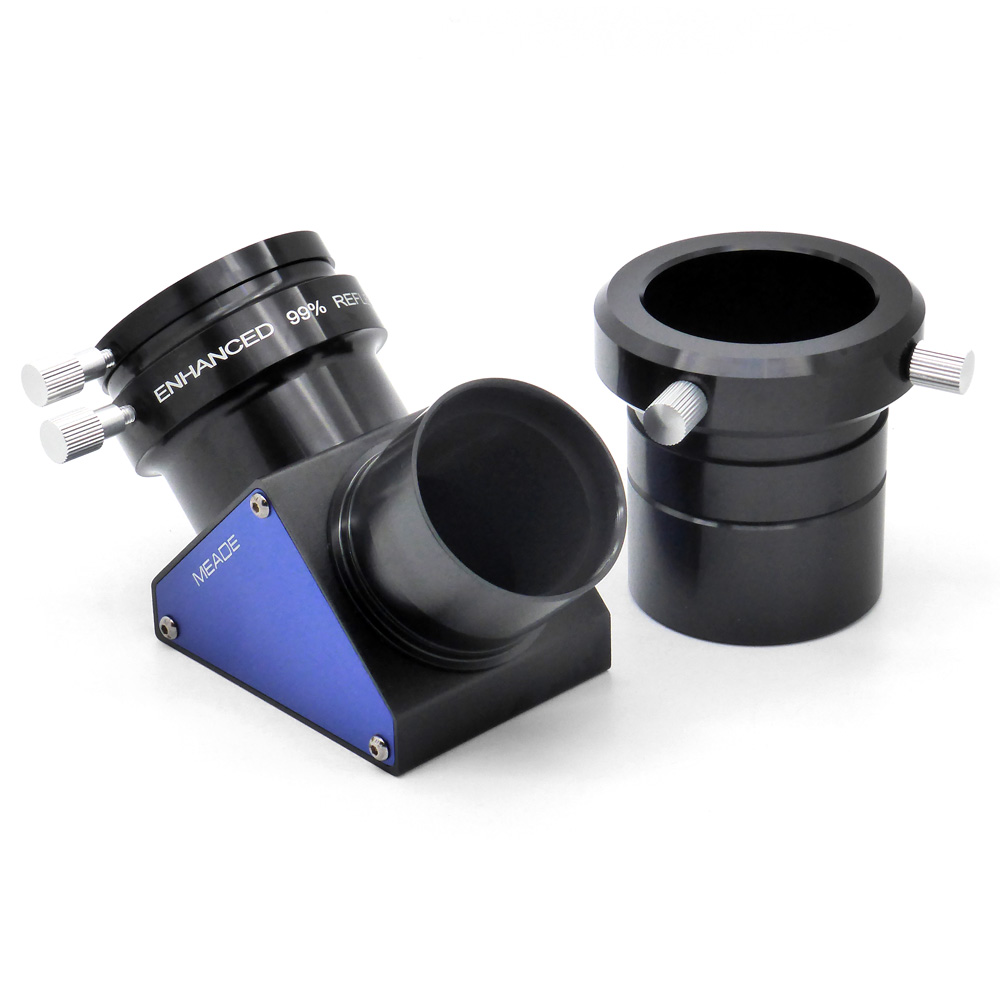

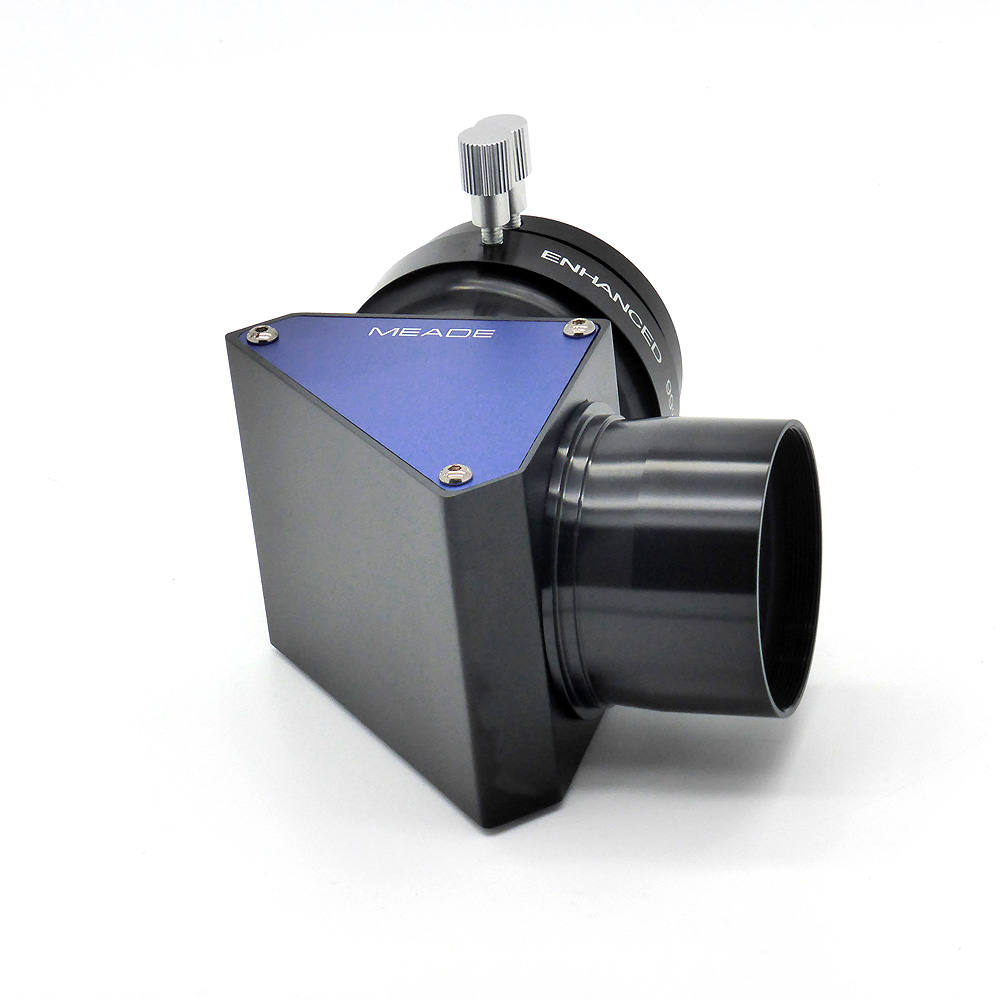

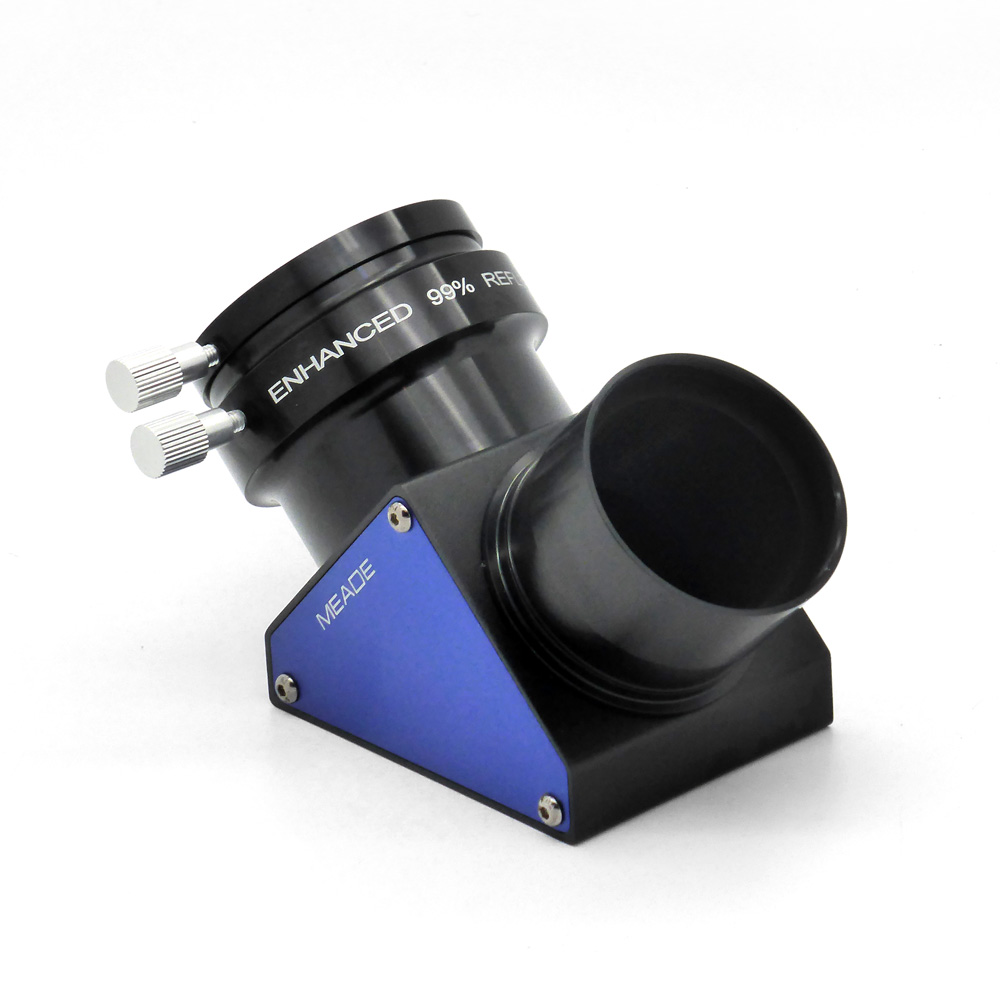

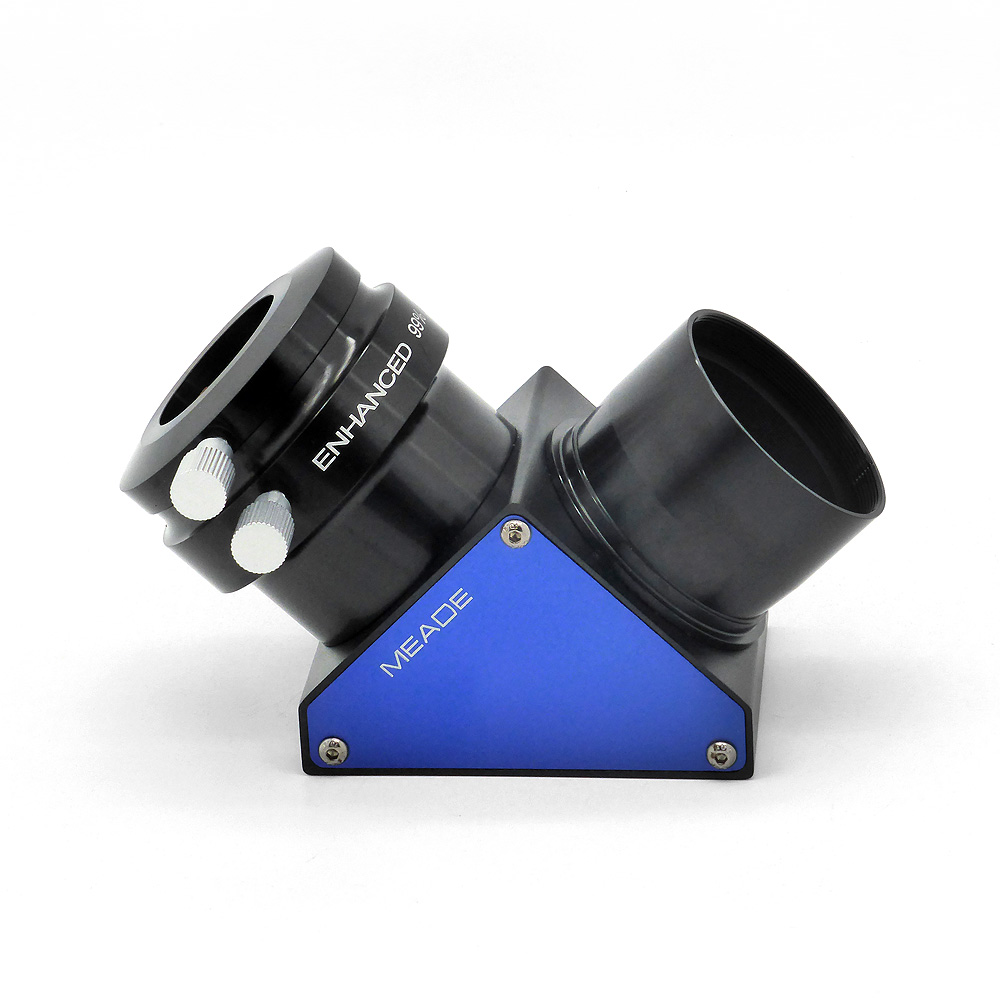

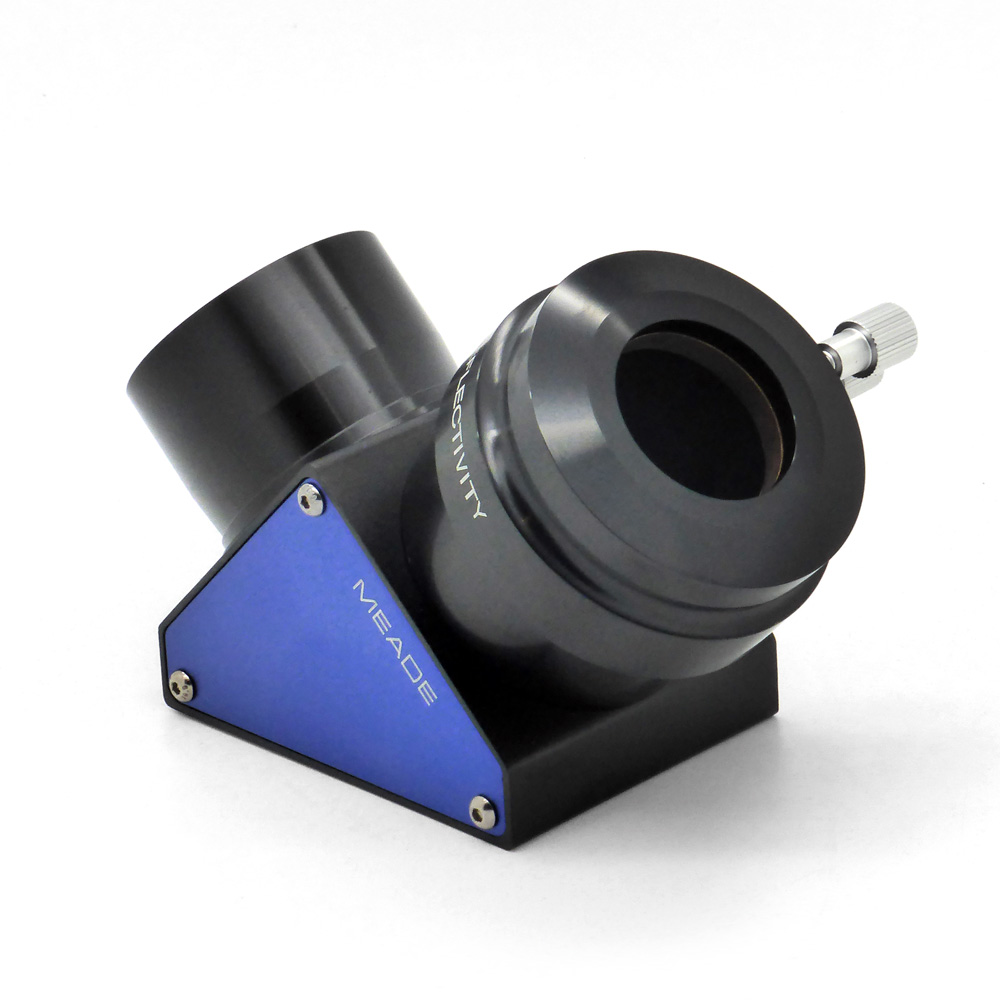

Meade Series 5000 2" Enhanced Diagonal Mirror with SC adapter

Features over 99% reflectivity and accepts 2" and 1.25" eyepieces and accessories.

Series 5000 Diagonal Mirror
Reflectivity: 99%
Angle: 90°
Barrel size: 2"

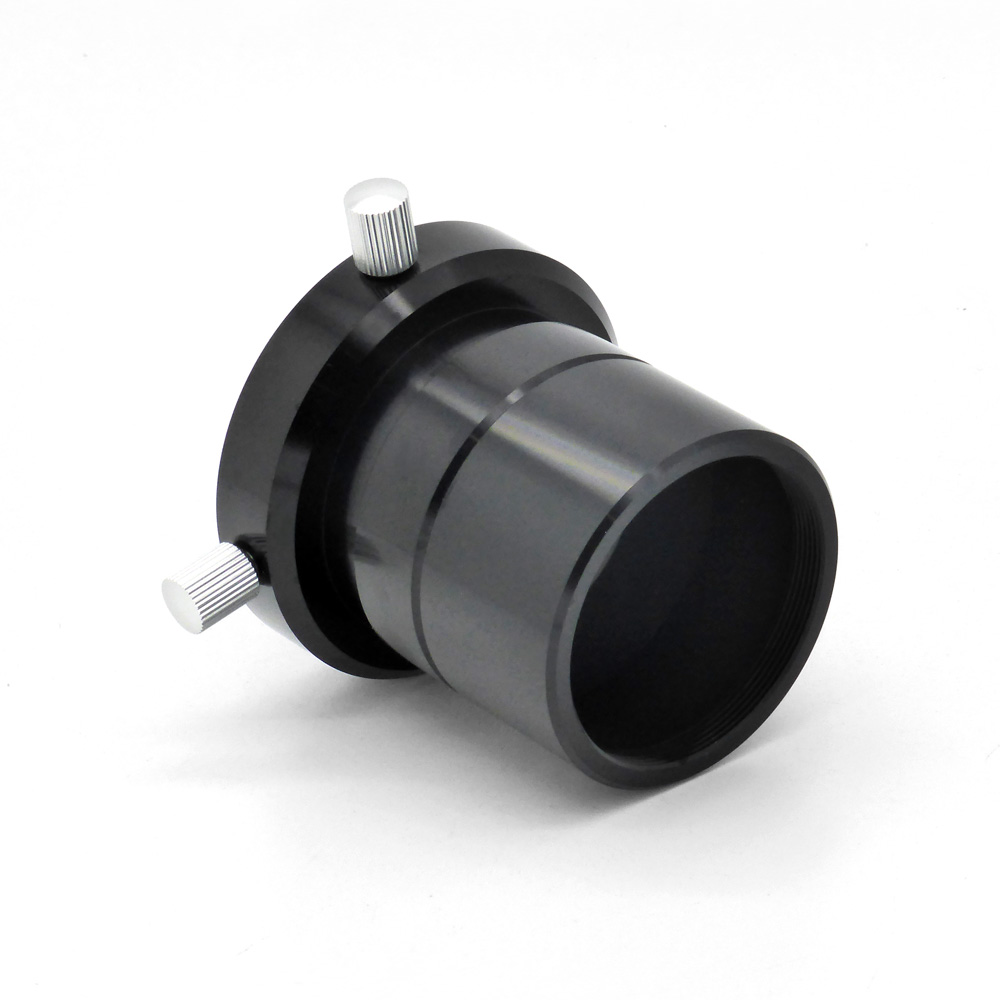

Schmidt-Cassegrain (SC) adapter

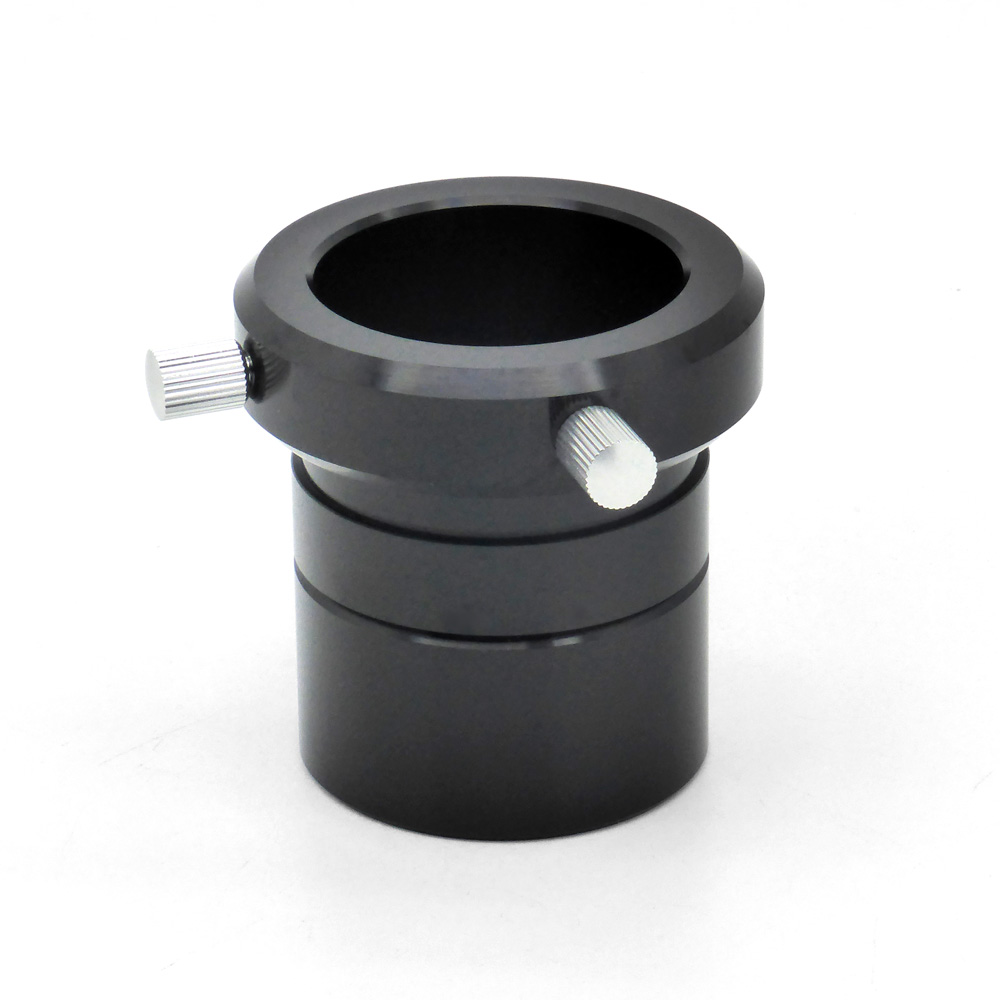

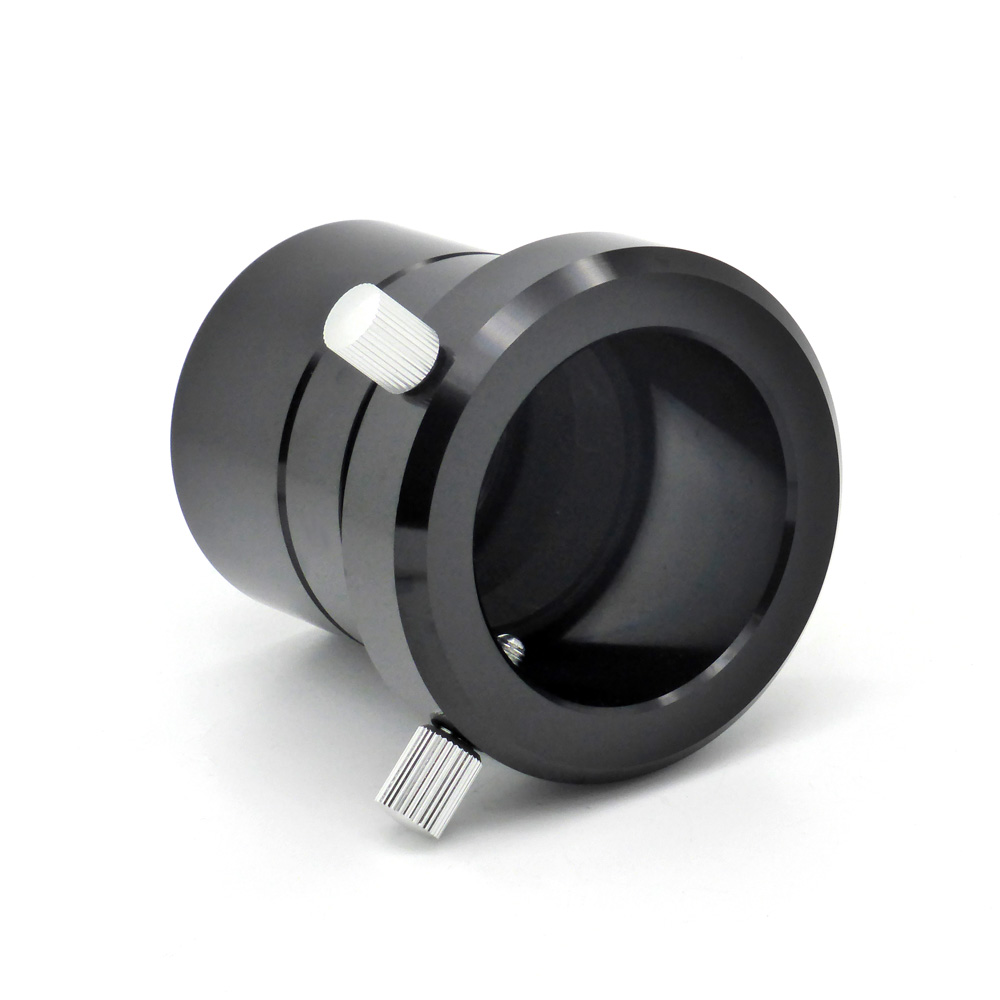

2" to 1.25" adapter
UK warranty

Meade Series 5000 2" Enhanced Diagonal Mirror w/ SC adapter

Product code: 07680
Availability: Out of stock
Incoming: To be confirmed
Retail Price: ~~£ ---~~

Shipping rates: England & Wales

£ 8.00

Scotland Central & South

£ 8.00

Scotland North

£ 8.00

Northern Ireland

£ 8.00

UK islands (from)

£ 8.00

European Union (from)

£ 15.00

Worldwide (from)

£ 20.00

Description

Meade Series 5000 2" Enhanced Diagonal Mirror #07680. Our best diagonal for Meade LT, LS, LX65, LX85, LX90, LX200, LX600 and LX850 models. Features an incredible 99% reflectivity over the visual spectrum. For spectacular views of the universe, use the best diagonal on the market - Series 5000.

Includes Schmidt-Cassegrain to 2" adapter for use with all Meade LT, LS, LX90, LX200, LX600, LX850 and other models with a standard "Schmidt-Cassegrain" (SC) type rear cell threads.

U.K. WARRANTY

INTERMEDIATE

VISUAL

OPTICS

ASTRONOMY

▼ read more ▼

Includes a 1.25" eyepiece adapter so you can use both 2" and 1.25" barrel eyepiece types and features a non-marring compression ring to safely secure your valuable eyepieces. The high precision optics are manufactured with thermally stable genuine Pyrex® glass and include enhanced dielectric coatings for maximum light transmission. Interferometer-tested for great performance.

Carries full one year UK warranty by Opticstar on behalf of Meade Instruments Corp.

Meade star diagonals and prisms.

▲ read less ▲

▼ show specification ▼

Meade Series 5000 2" Enhanced Diagonal Mirror w/ SC adapter
Attribute	Specification
Meade Product Code (SKU)	07680
Universal Product Code (UPC)	709942002294
Warranty	1 year UK warranty by Opticstar on behalf of Meade Instruments
Series	Star Diagonals and Prisms
Experience Level	Intermediate, Advanced
Angle	90°
Barrel Size	2"
Mirror	Genuine Pyrex® mirror
Reflectivity	Higher than 99% over the visual spectrum
Optical Coatings	Enhanced Dielectric
Adapters Included	(1) Schmidt-Cassegrain to 2" adapter; (2) 2" to 1.25" adapter
Assembled Product Weight	470 grams including 2" to 1.25" adapter; plus 200 grams for SC adapter
Assembled Product Dimensions	14 cm x 6 cm x 9 cm (excluding SC adapter)

▲ hide specification ▲

Support

Documents: Meade Series 5000 2-inch Enhanced Diagonal Mirror instructions

0.9 MB • 23 March 2022

Meade and Coronado catalogue

19.3 MB • 05 February 2021

Meade Instruments UK warranty

0.1 MB • 12 October 2021

GPDR (General Data Protection Regulation)

0.2 MB • 12 October 2021

Links: Meade star diagonals and prisms

internal link • star diagonals page
