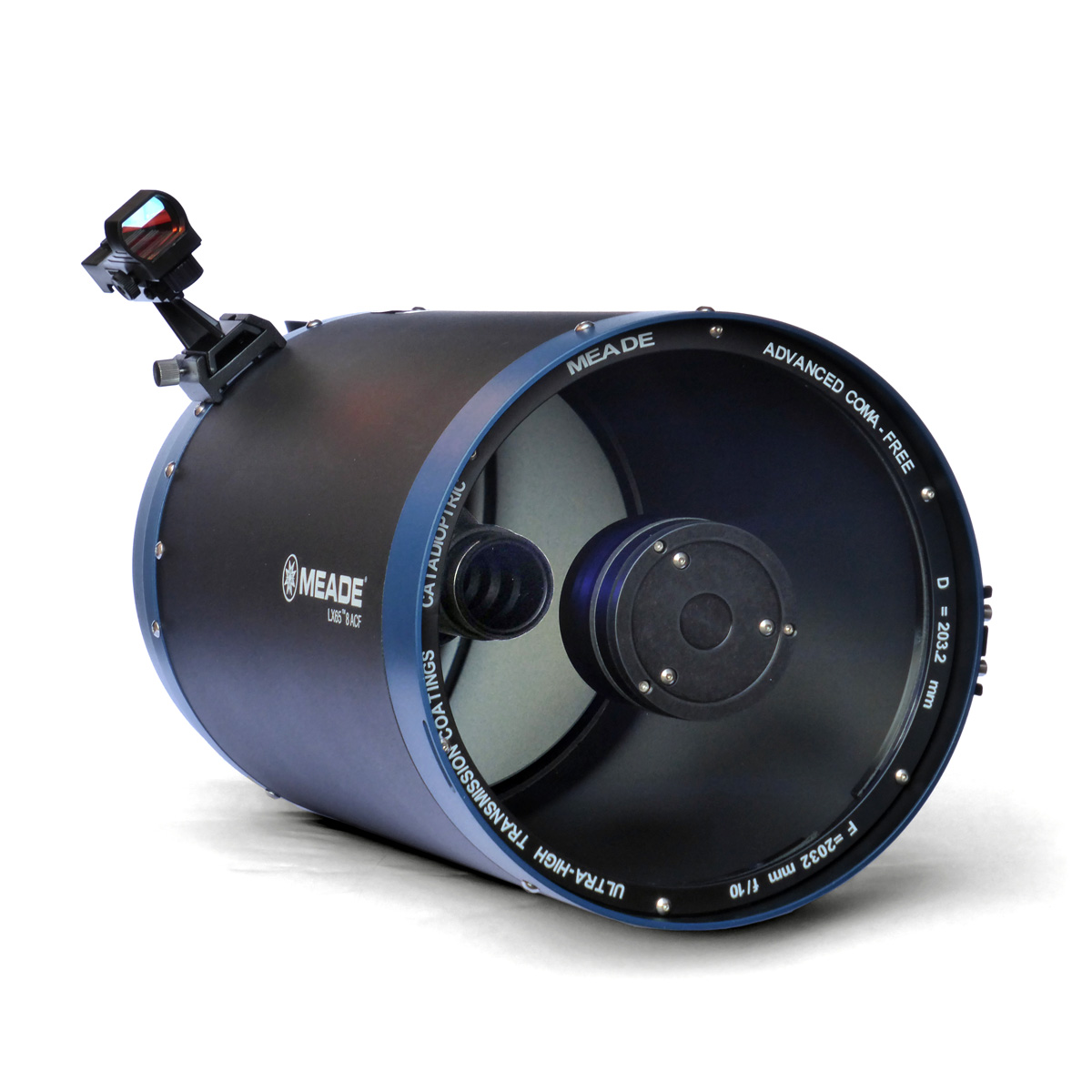

Meade LX65 8-inch ACF OTA only

Large aperture Advanced Coma-Free (ACF™) optics produce pinpoint stars to the edge of field.

  • Advanced Coma-Free optical design
  • Ultra-High Transmission Coatings (UHTC™)
  • Aperture: 8-inch (203mm)
  • Focal length: 2032mm
  • Focal ratio: f/10
  • One 1.25" Plossl 26mm Eyepiece
  • One 1.25" Mirror Star Diagonal
  • UK warranty
Meade LX65 8-inch ACF OTA only
  • Product code: 228014
  • Availability: In stock
  • Despatch: 2 business days
  • Retail Price: £ 1139.00
Shipping rates
England & Wales
£ 10.00
Scotland Central & South
£ 10.00
Scotland North
£ 25.00
Northern Ireland
£ 25.00
UK islands (from)
£ 30.00
European Union (from)
£ 25.00

Description

The LX65 Series 8" ACF has an Advanced Coma-Free (ACF™) optical design offering the coma-free pinpoint star images and flatter image fields while reducing astigmatism and eliminates diffraction spikes. Features include an 8" (203mm) aperture, 2032mm focal length, and f/10 focal ratio.

Equipped with an internal single speed focuser and Ultra High Transmission Coatings (UHTC™) for the improvement of brighter star clusters, more fine detail in nebulae, and greater surface features on planets. Includes (1) 26mm,1.25" Super Plossl eyepiece and a red-dot viewfinder along with a vixen-style dovetail. With included accessories, the optical tube assembly (OTA) weighs 5 kg (11.10 lbs) and has dimensions of Ø=25cm x 46cm (Ø=9.8" x 18.1").


U.K. WARRANTY

INTERMEDIATE

OPTICS

ASTRONOMY
▼ read more ▼

Meade premium optics

The heart of any telescope is its optics. Meade delivers the highest quality professional grade optics available. These optical tubes feature large apertures and Meade's Advanced Coma-Free (ACF™) optics coupled with Meade's Ultra-High Transmission Coatings (UHTC™), giving you the ultimate in premium optics. The LX65 is an ideal high-resolution visual observing instrument but is also fully qualified for the more advanced areas of astronomy, including planetary astrophotography. Observe Saturn's rings, the surface of the Moon, and even the cloud bands on Jupiter in great detail.

Carries full one year UK warranty by Opticstar Ltd on behalf of Meade Instruments Corp.

LX65 telescopes.
▲ read less ▲
▼ show specification ▼
Meade LX65 8-inch ACF OTA only
Attribute Specification
Meade Product Code / sku 228014
Universal Product Code (UPC) 709942999587
Warranty 1 year UK warranty by Opticstar Ltd on behalf of Meade Instruments USA
Series LX65
Experience Level Intermediate
Clear Aperture 203mm (8-inch)
Focal Length 2023mm
Focal Ratio f/10
Optical Design ACF™ - Advanced Coma-Free
Optical Coatings UHTC™ - Ultra High Transmission
Focuser Mechanism Single speed internal focuser
Viewfinder Red Dot viewfinder
Eyepiece Meade Series 4000™ 26mm Super Plossl, 1.25"
Diagonal Meade #07202 Diagonal Mirror, 1.25"
Dovetail Vixen-style
Optical Tube Weight 5 kg (11.10 lbs)
Optical Tube Dimensions Ø=25cm x 46cm (Ø=9.8" x 18.1")
Transit Weight 9 kg
Transit Dimensions 69cm x 30cm x 36cm
▲ hide specification ▲
